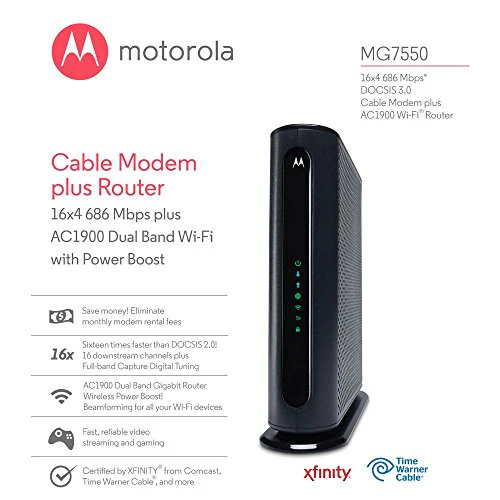

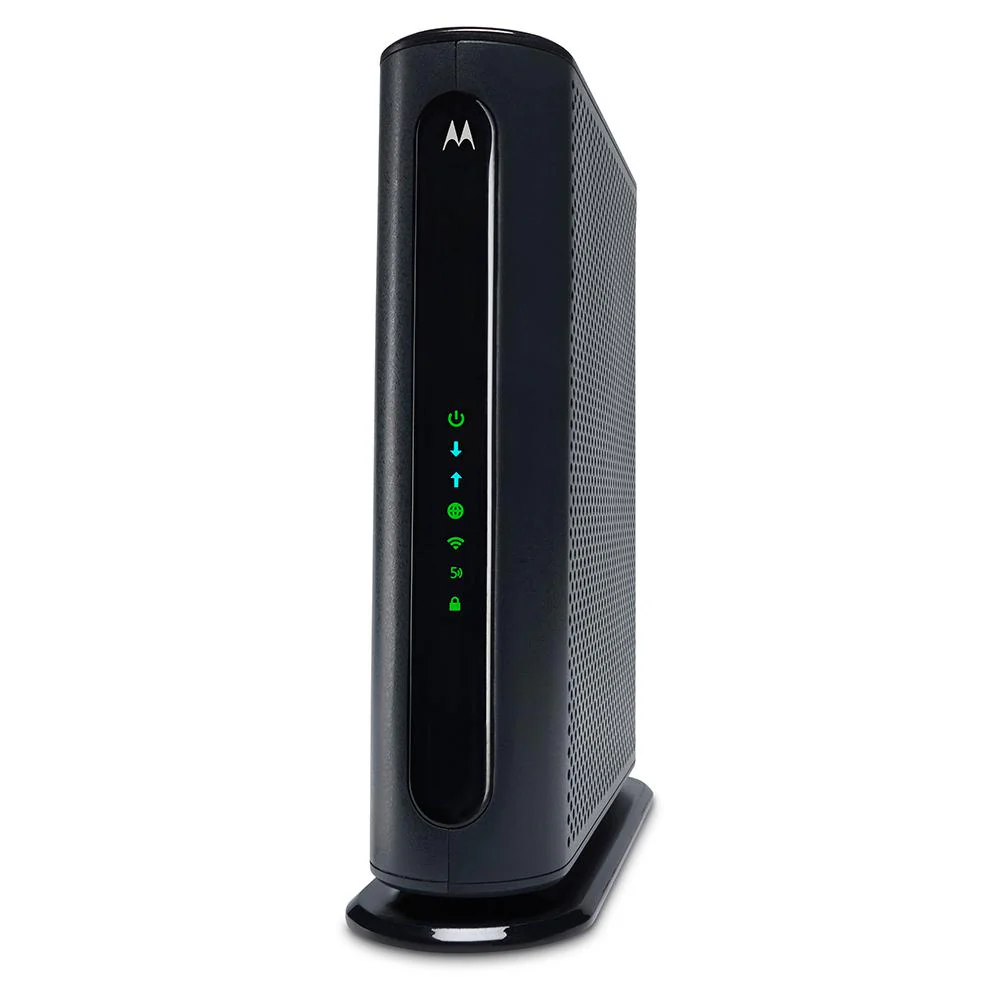

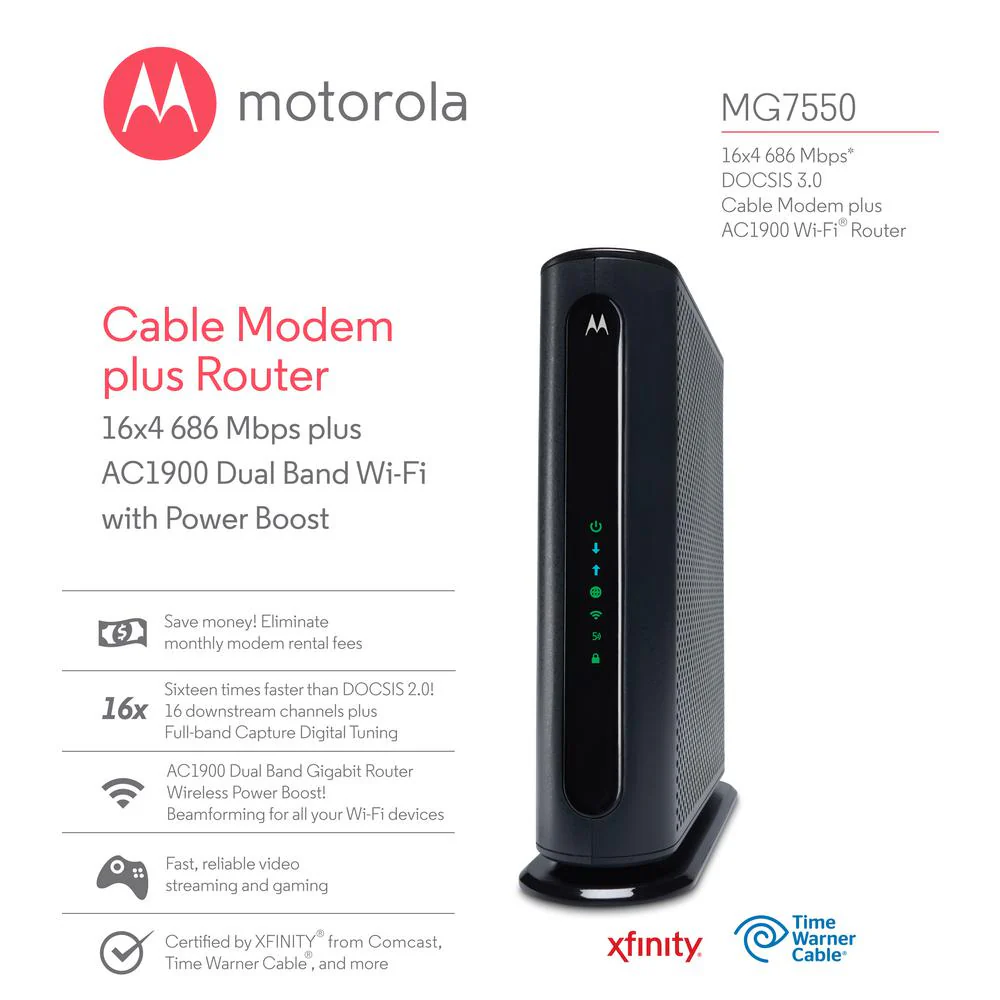

The Motorola Model MG7550 cable modem with built-in router supports modem speeds up to 686Mbps. With its high speed and IPv4 and IPv6 networking support, this is a product designed and built for use today and for years to come. The embedded AC1900 Dual Band wireless router provides the range, wireless speeds and networking support needed for multimedia, Internet video and high-performance networking in a home or office. Power Boost technology amplifies the wireless signal to the legal limit in the U.S. AnyBeam implicit beamforming at 2.4Ghz and 5.0Ghz focuses the wireless signal toward the wireless clients. Both Power Boost and AnyBeam extend range. Together, they provide the fastest and most robust connections over the largest possible range, for virtually all client types.

• Up to 686Mbps downstream and 123Mbps upstream with bonding of up to 16-channels downstream and 4-channels upstream, full-band capture digital tuning lets service providers deliver faster, more reliable Internet
• AC1900 dual band Wi-Fi plus 4 gigabit Ethernet ports
• AC1900 dual band Wi-Fi provides wireless Internet access for wireless ac, n, a, g and b devices including smartphones, computers, tablets and HDTVs

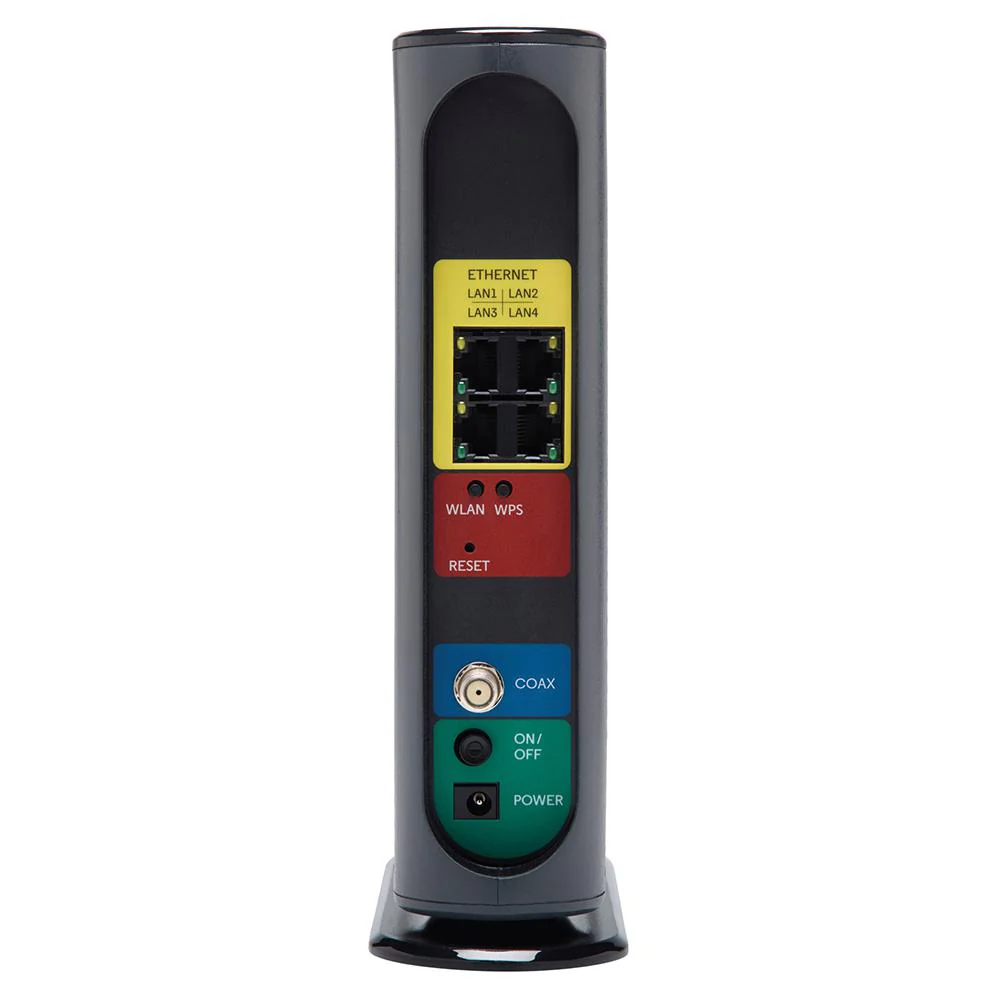

• Four 10/100/1000 gigabit Ethernet ports for wired connection to computers, HDTVs, game stations and other Ethernet-capable devices
• Advanced firewall with denial-of-service attack prevention
• Guest network access gives visitors Internet services while protecting your local network's information
• Parental control lets parents restrict access to child-inappropriate web sites
• Browser-based configuration manager with easy menus and context-sensitive help
• Power, downstream, upstream, online, 2.4Ghz wireless, 5.0Ghz wireless, WPS and Ethernet link lights allow easy status monitoring
• Supports IPv4 and IPv6 - support for the latest Internet addressing keeps your equipment current
• Provides support for DOCSIS 3.0 as well as DOCSIS 1.1 and 2.0, to ensure operation and compatibility with all U.S. operators, DOCSIS (Data Over Cable Service Interface Specification) is the industry standard for transmission of Internet data over cable-based systems in the U.S. and many other countries
• SNMP v1/v2/v3
• Compact, space-saving design
• Certified by cable labs, Comcast XFINITY, time warner Cable and other service providers
• Ruggedized cable and power lightning protection

• Product Depth (in.): 8.5 in
• Product Height (in.): 9 in
• Product Width (in.): 2.5 in
• Compatible Service: CableLabs Certified,Comcast Home / XFINITY,Time Warner Cable
• Electronics Included Components: Cable
• Features: Built-in firewall,WPS,Wireless
• Maximum data transfer rate/speed (Mbps): 686
• Modem Type: Cable
• Number of Ethernet Ports: 4
• Number of USB Ports: None
• Operating System Compatibility: Unix
• Product Weight (lb.): 1.48lb
• Wired or Wireless: Wireless
• Wireless Standard: Wireless AC Gigabit
• Certifications and Listings: FCC Listed

Product Dimensions:

10.90 x 2.80 x 10.20 in

2.50 lbs

Shipping Dimensions:

11.90 x 3.80 x 11.20 in
