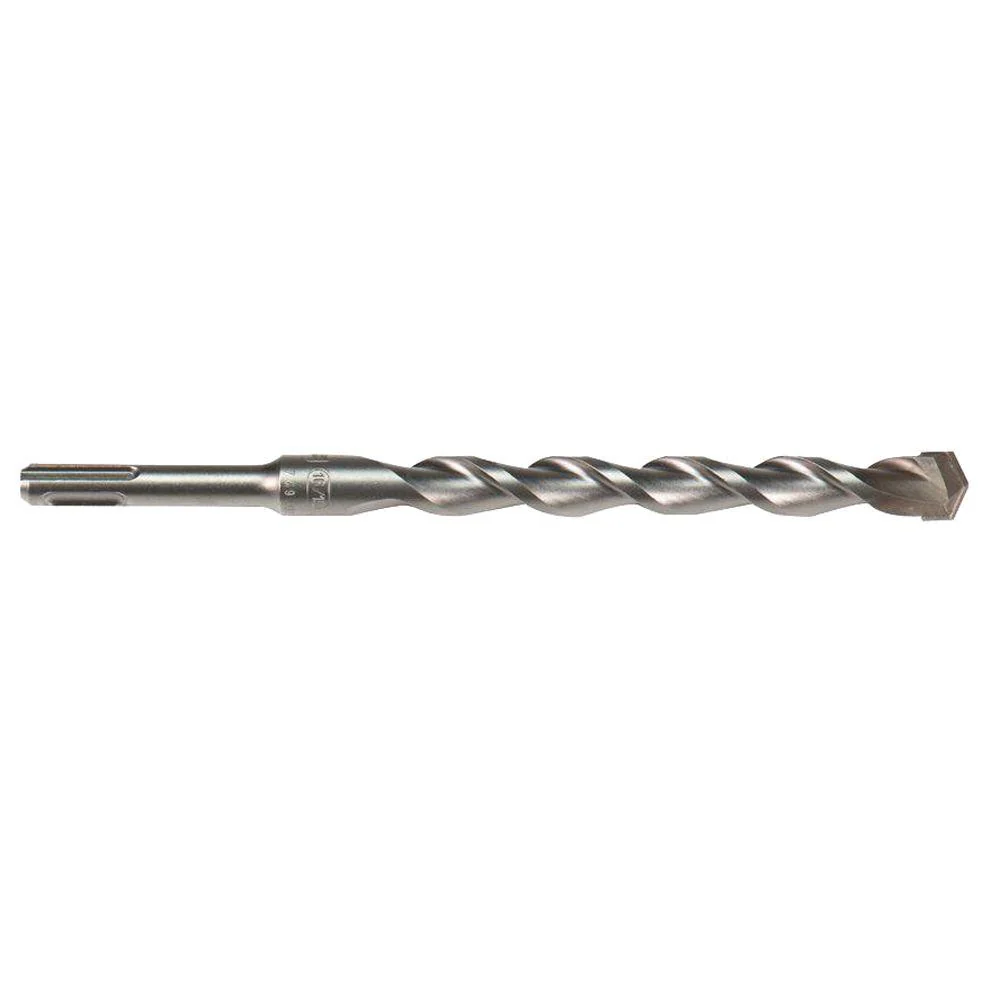

Milwaukee 48-20-7065 3/4 by 12-Inch SDS Bit
The Milwaukee 48-20-7065 is a 3/4 in. x 12 in. Carbide 2-Cutter SDS Bit. The 48-20-7065 incorporates the industry standard shank for carbide drilling bits, Milwaukee's SDS bits have carbide vacuum brazed to heat treated steel shanks. The sharpened angle of the carbide creates two cutting edges. The flute of the bit is designed for fast removal of the concrete dust from the hole, aiding in more efficient drilling of small holes. SDS bits are available from 5/32 in. to 1 in.
- 3/4 in. Dia
- SDS shank
- 2-cutter head
- 10 in. drilling depth
- 12 in. overall length
- Carbide construction
- Assembled Depth (in.): 0.75 in
- Assembled Height (in.): 14 in
- Assembled Width (in.): 1.57 in
- Bit Diameter: 3/4 in
- Bit Length (in.): 12
- Bit diameter (in.): 0.75
- Drilling Depth (in): 10
- Shank Diameter: 25/64 in
- Bit Material: Carbide
- Color Family: Silver
- Drill & Router Bit Type: Hammer, Percussion & Masonry Bits
- Drill Bit Type: Percussion Bit
- Drill Bit Type(s) Included: Percussion Bit
- Individual/Set: Individual
- Material Application: Concrete
- Min Chuck Size Required: SDS
- Self-Feeding: No
- Shank Style: SDS Plus
- Shank Style: SDS Plus
- Tools Product Type: Power Tool
Product Dimensions:
0.75 x 1.75 x 13.38 in
0.70 lbs
Shipping Dimensions:
15.10 x 1.00 x 1.40 in
The Milwaukee 48-20-7065 is a 3/4 in. x 12 in. Carbide 2-Cutter SDS Bit. The 48-20-7065 incorporates the industry standard shank for carbide drilling bits, Milwaukee's SDS bits have carbide vacuum brazed to heat treated steel shanks. The sharpened angle of the carbide creates two cutting edges. The flute of the bit is designed for fast removal of the concrete dust from the hole, aiding in more efficient drilling of small holes. SDS bits are available from 5/32 in. to 1 in.
- 3/4 in. Dia
- SDS shank
- 2-cutter head
- 10 in. drilling depth
- 12 in. overall length
- Carbide construction
- Assembled Depth (in.): 0.75 in
- Assembled Height (in.): 14 in
- Assembled Width (in.): 1.57 in
- Bit Diameter: 3/4 in
- Bit Length (in.): 12
- Bit diameter (in.): 0.75
- Drilling Depth (in): 10
- Shank Diameter: 25/64 in
- Bit Material: Carbide
- Color Family: Silver
- Drill & Router Bit Type: Hammer, Percussion & Masonry Bits
- Drill Bit Type: Percussion Bit
- Drill Bit Type(s) Included: Percussion Bit
- Individual/Set: Individual
- Material Application: Concrete
- Min Chuck Size Required: SDS
- Self-Feeding: No
- Shank Style: SDS Plus
- Shank Style: SDS Plus
- Tools Product Type: Power Tool
Product Dimensions:
0.75 x 1.75 x 13.38 in
0.70 lbs
Shipping Dimensions:
15.10 x 1.00 x 1.40 in
Description
The Milwaukee 48-20-7065 is a 3/4 in. x 12 in. Carbide 2-Cutter SDS Bit. The 48-20-7065 incorporates the industry standard shank for carbide drilling bits, Milwaukee's SDS bits have carbide vacuum brazed to heat treated steel shanks. The sharpened angle of the carbide creates two cutting edges. The flute of the bit is designed for fast removal of the concrete dust from the hole, aiding in more efficient drilling of small holes. SDS bits are available from 5/32 in. to 1 in.
- 3/4 in. Dia
- SDS shank
- 2-cutter head
- 10 in. drilling depth
- 12 in. overall length
- Carbide construction
- Assembled Depth (in.): 0.75 in
- Assembled Height (in.): 14 in
- Assembled Width (in.): 1.57 in
- Bit Diameter: 3/4 in
- Bit Length (in.): 12
- Bit diameter (in.): 0.75
- Drilling Depth (in): 10
- Shank Diameter: 25/64 in
- Bit Material: Carbide
- Color Family: Silver
- Drill & Router Bit Type: Hammer, Percussion & Masonry Bits
- Drill Bit Type: Percussion Bit
- Drill Bit Type(s) Included: Percussion Bit
- Individual/Set: Individual
- Material Application: Concrete
- Min Chuck Size Required: SDS
- Self-Feeding: No
- Shank Style: SDS Plus
- Shank Style: SDS Plus
- Tools Product Type: Power Tool
Product Dimensions:
0.75 x 1.75 x 13.38 in
0.70 lbs
Shipping Dimensions:
15.10 x 1.00 x 1.40 in
