Broan Automatic Make-Up Air Damper with Pressure Sensor Kit, 10-Inch, Galvanized Steel, Universal

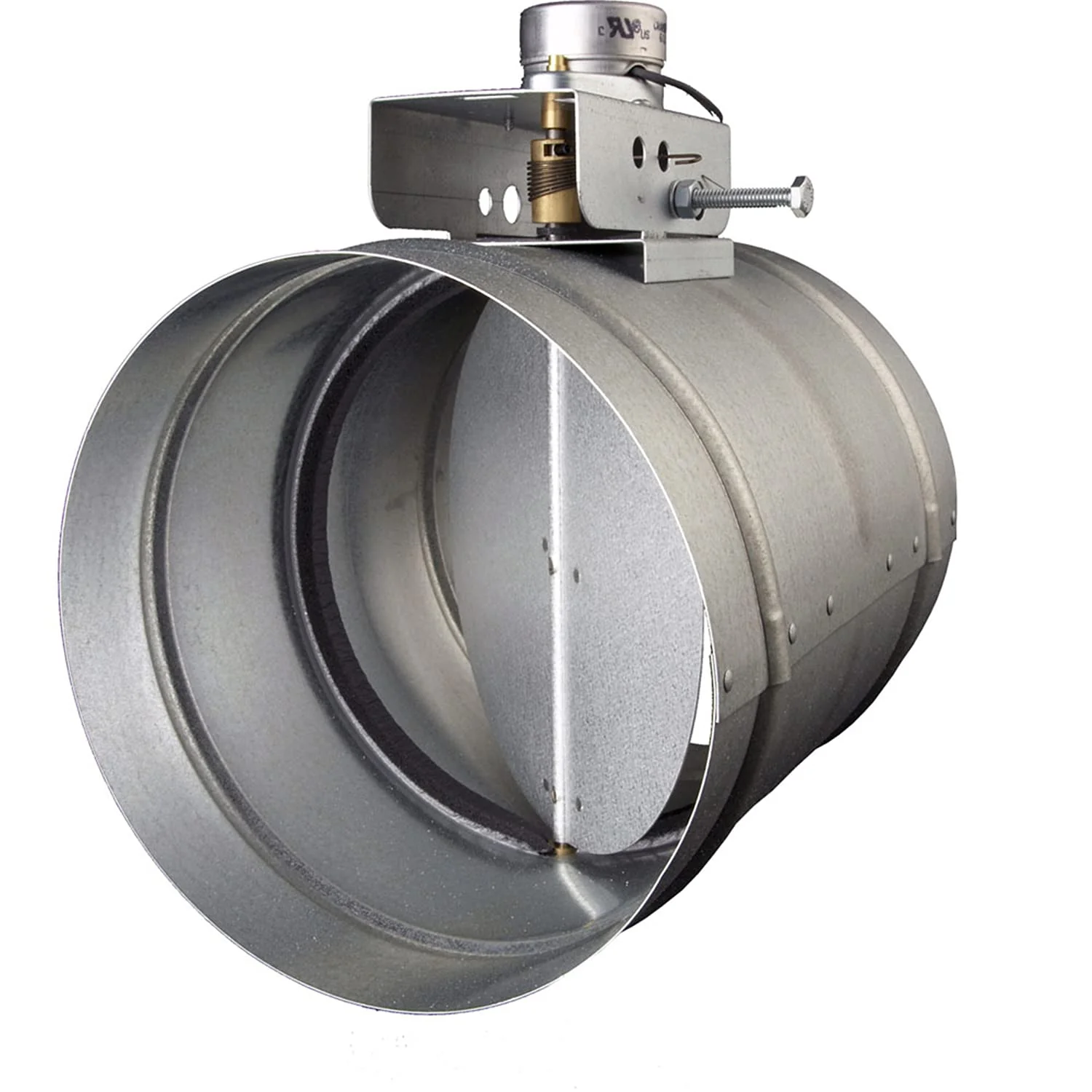

Product image 1
1 / 2

Broan Automatic Make-Up Air Damper with Pressure Sensor Kit, 10-Inch, Galvanized Steel, Universal

The Broan MD10TU 10-inch Universal Automatic Make-Up Air Damper with Pressure Sensor Kit offers advanced technology to maintain balanced air pressure between indoor and outdoor spaces while enhancing ventilation for a healthier living environment. Constructed from durable galvanized steel, this damper is designed to automatically open in response to the operation of a range hood, allowing fresh air to enter the home and effectively removing harmful gases, smoke, and particulates produced by naturally vented combustion appliances such as fireplaces and water heaters. The system includes a pressure sensor that attaches to the exhaust duct to detect when the range hood is active, triggering the damper to open. Slave dampers (MD6S, MD8S, or MD10S) can be interlocked with the main damper to operate in unison, providing synchronized airflow control for larger ventilation needs. This interlocked make-up air system complies with IRC Code requirements for range hoods exceeding 400 CFM and avoids energy waste associated with traditional barometric solutions by preventing unwanted air infiltration during heating or cooling cycles. The kit is suitable for both new construction and retrofit applications and requires only low voltage wiring for installation. Fresh air wall caps are recommended for use with this system to ensure optimal performance. Its modern design and reliable operation make it an essential component for maintaining balanced indoor air quality and comfort in residential kitchens.

  • Automatic Pressure Equalization: Automatically balances indoor and outdoor air pressure to maintain a comfortable and healthy home environment.
  • Interlocked Operation: Synchronizes with slave dampers to provide coordinated airflow control for efficient ventilation.
  • Low Voltage Sensor Activation: Uses a pressure sensor attached to the exhaust duct that activates the damper only when the range hood is operating, ensuring energy-efficient performance.
  • Compliance with IRC Code: Meets building code requirements for make-up air systems with range hoods over 400 CFM, ensuring safe and effective ventilation.
  • Durable Galvanized Steel Construction: Built from sturdy materials for long-lasting use in both new construction and retrofit installations.

    • Enhance your home's ventilation system today with the Broan MD10TU Automatic Make-Up Air Damper Kit—order now to ensure balanced airflow and improved indoor air quality!


    Product Dimensions:

    6.00 x 6.00 x 6.00 in

    5.50 lbs


    Shipping Dimensions:

    11.99 x 11.10 x 10.90 in

    The Broan MD10TU 10-inch Universal Automatic Make-Up Air Damper with Pressure Sensor Kit offers advanced technology to maintain balanced air pressure between indoor and outdoor spaces while enhancing ventilation for a healthier living environment. Constructed from durable galvanized steel, this damper is designed to automatically open in response to the operation of a range hood, allowing fresh air to enter the home and effectively removing harmful gases, smoke, and particulates produced by naturally vented combustion appliances such as fireplaces and water heaters. The system includes a pressure sensor that attaches to the exhaust duct to detect when the range hood is active, triggering the damper to open. Slave dampers (MD6S, MD8S, or MD10S) can be interlocked with the main damper to operate in unison, providing synchronized airflow control for larger ventilation needs. This interlocked make-up air system complies with IRC Code requirements for range hoods exceeding 400 CFM and avoids energy waste associated with traditional barometric solutions by preventing unwanted air infiltration during heating or cooling cycles. The kit is suitable for both new construction and retrofit applications and requires only low voltage wiring for installation. Fresh air wall caps are recommended for use with this system to ensure optimal performance. Its modern design and reliable operation make it an essential component for maintaining balanced indoor air quality and comfort in residential kitchens.

  • Automatic Pressure Equalization: Automatically balances indoor and outdoor air pressure to maintain a comfortable and healthy home environment.
  • Interlocked Operation: Synchronizes with slave dampers to provide coordinated airflow control for efficient ventilation.
  • Low Voltage Sensor Activation: Uses a pressure sensor attached to the exhaust duct that activates the damper only when the range hood is operating, ensuring energy-efficient performance.
  • Compliance with IRC Code: Meets building code requirements for make-up air systems with range hoods over 400 CFM, ensuring safe and effective ventilation.
  • Durable Galvanized Steel Construction: Built from sturdy materials for long-lasting use in both new construction and retrofit installations.

    • Enhance your home's ventilation system today with the Broan MD10TU Automatic Make-Up Air Damper Kit—order now to ensure balanced airflow and improved indoor air quality!


    Product Dimensions:

    6.00 x 6.00 x 6.00 in

    5.50 lbs


    Shipping Dimensions:

    11.99 x 11.10 x 10.90 in

    $72.60

    Original: $242.00

    -70%
    Broan Automatic Make-Up Air Damper with Pressure Sensor Kit, 10-Inch, Galvanized Steel, Universal—

    $242.00

    $72.60

    Description

    The Broan MD10TU 10-inch Universal Automatic Make-Up Air Damper with Pressure Sensor Kit offers advanced technology to maintain balanced air pressure between indoor and outdoor spaces while enhancing ventilation for a healthier living environment. Constructed from durable galvanized steel, this damper is designed to automatically open in response to the operation of a range hood, allowing fresh air to enter the home and effectively removing harmful gases, smoke, and particulates produced by naturally vented combustion appliances such as fireplaces and water heaters. The system includes a pressure sensor that attaches to the exhaust duct to detect when the range hood is active, triggering the damper to open. Slave dampers (MD6S, MD8S, or MD10S) can be interlocked with the main damper to operate in unison, providing synchronized airflow control for larger ventilation needs. This interlocked make-up air system complies with IRC Code requirements for range hoods exceeding 400 CFM and avoids energy waste associated with traditional barometric solutions by preventing unwanted air infiltration during heating or cooling cycles. The kit is suitable for both new construction and retrofit applications and requires only low voltage wiring for installation. Fresh air wall caps are recommended for use with this system to ensure optimal performance. Its modern design and reliable operation make it an essential component for maintaining balanced indoor air quality and comfort in residential kitchens.

  • Automatic Pressure Equalization: Automatically balances indoor and outdoor air pressure to maintain a comfortable and healthy home environment.
  • Interlocked Operation: Synchronizes with slave dampers to provide coordinated airflow control for efficient ventilation.
  • Low Voltage Sensor Activation: Uses a pressure sensor attached to the exhaust duct that activates the damper only when the range hood is operating, ensuring energy-efficient performance.
  • Compliance with IRC Code: Meets building code requirements for make-up air systems with range hoods over 400 CFM, ensuring safe and effective ventilation.
  • Durable Galvanized Steel Construction: Built from sturdy materials for long-lasting use in both new construction and retrofit installations.

    • Enhance your home's ventilation system today with the Broan MD10TU Automatic Make-Up Air Damper Kit—order now to ensure balanced airflow and improved indoor air quality!


    Product Dimensions:

    6.00 x 6.00 x 6.00 in

    5.50 lbs


    Shipping Dimensions:

    11.99 x 11.10 x 10.90 in
